Grouping Search
如果搜索结果中所有 Entity 在某个标量字段上的取值都相同时,搜索结果可能并不能真实反映与查询向量相似的所有向量在向量空间中的分布情况。为了提升召回结果的多样性,可以考虑使用 Grouping Search。本节将介绍如何使用 Grouping Search 以及与之相关的注意事项。
概述
当搜索结果中所有 Entity 在某个标量字段上的取值都相同时,表明这些 Entity 在某个属性上相似,可能会对搜索结果带来负面影响。
假设 Collection 中存放了很多文档(docId)。为了尽可能在将文档转换成向量表示后保留更多的语义信息,每篇文档都被拆分成大小合适的段落(chunk)作为单独的 Entity 存放。虽然文档被拆分成了更小的段落,用户关心的可能依然是哪些文档与自己的关注点有关。

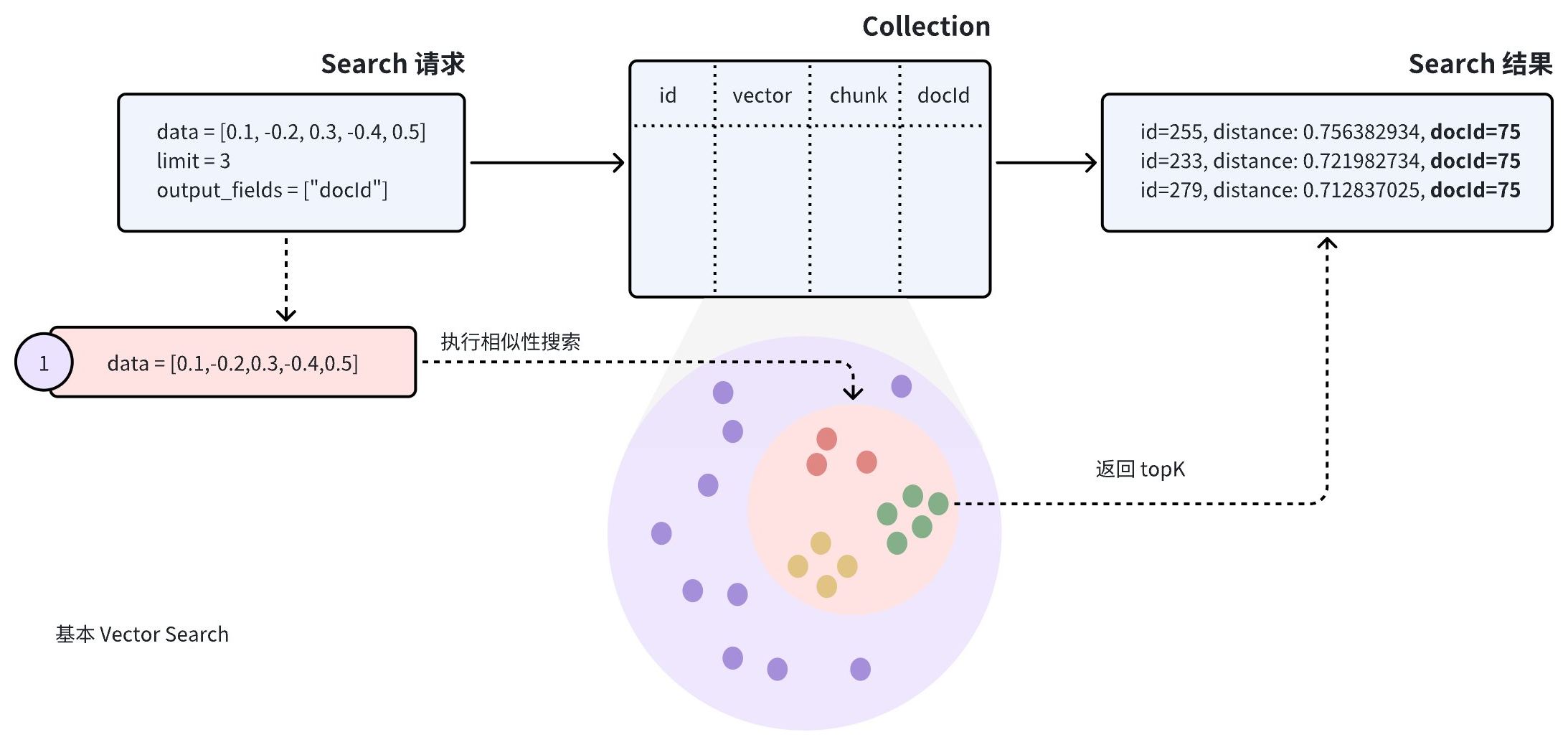

如上图所示,在该 Collection 进行 ANN Search 时,搜索结果可能会包含多个来自同一篇文档的段落,导致部分文档被忽略。这并不符合用户的使用场景。
如果要提升搜索结果的多样性,可以考虑在 Search 请求中添加 group_by_field
参数,启用 Grouping Search。如上图所示,您可以将 group_by_field
设置为 docId
。Zilliz Cloud 在收到该请求后,会执行如下流程:
-
根据请求中携带的查询向量进行 ANN Search,找出与查询向量最为相似的所有 Entity。
-
根据请求中指定的
group_by_id
对搜索结果进行分组。 -
根据
limit
参数,返回符合条件的分组,并在每个分组中返回最相似的一个 Entity。
在默认情况下,Grouping Search 仅为每个分组返回一条 Entity。如果希望增加每个分组返回的结果数量,可以使用 group_size
和 strict_group_size
参数进行控制。
执行 Grouping Search
本节将结合具体代码示例来介绍如何使用 Grouping Search。以下示例代码假设 Collection 中有 id
、vector
、chunk
和 docId
四个字段。
[
{"id": 0, "vector": [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, -0.26286205330961354, 0.9029438446296592], "chunk": "pink_8682", "docId": 1},
{"id": 1, "vector": [0.19886812562848388, 0.06023560599112088, 0.6976963061752597, 0.2614474506242501, 0.838729485096104], "chunk": "red_7025", "docId": 5},
{"id": 2, "vector": [0.43742130801983836, -0.5597502546264526, 0.6457887650909682, 0.7894058910881185, 0.20785793220625592], "chunk": "orange_6781", "docId": 2},
{"id": 3, "vector": [0.3172005263489739, 0.9719044792798428, -0.36981146090600725, -0.4860894583077995, 0.95791889146345], "chunk": "pink_9298", "docId": 3},
{"id": 4, "vector": [0.4452349528804562, -0.8757026943054742, 0.8220779437047674, 0.46406290649483184, 0.30337481143159106], "chunk": "red_4794", "docId": 3},
{"id": 5, "vector": [0.985825131989184, -0.8144651566660419, 0.6299267002202009, 0.1206906911183383, -0.1446277761879955], "chunk": "yellow_4222", "docId": 4},
{"id": 6, "vector": [0.8371977790571115, -0.015764369584852833, -0.31062937026679327, -0.562666951622192, -0.8984947637863987], "chunk": "red_9392", "docId": 1},
{"id": 7, "vector": [-0.33445148015177995, -0.2567135004164067, 0.8987539745369246, 0.9402995886420709, 0.5378064918413052], "chunk": "grey_8510", "docId": 2},
{"id": 8, "vector": [0.39524717779832685, 0.4000257286739164, -0.5890507376891594, -0.8650502298996872, -0.6140360785406336], "chunk": "white_9381", "docId": 5},
{"id": 9, "vector": [0.5718280481994695, 0.24070317428066512, -0.3737913482606834, -0.06726932177492717, -0.6980531615588608], "chunk": "purple_4976", "docId": 3},
]
在 Search 请求中,将 group_by_field
和 output_fields
都设置为 docId
。 在收到请求后,Zilliz Cloud 会根据指定的字段对搜索结果分组并返回每组结果中最与查询向量最相似的一个 Entity,并在每个返回的 Entity 中携带该 Entity 在 docId 字段上的取值。
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import MilvusClient
client = MilvusClient(
uri="YOUR_CLUSTER_ENDPOINT",
token="YOUR_CLUSTER_TOKEN"
)
query_vectors = [
[0.14529211512077012, 0.9147257273453546, 0.7965055218724449, 0.7009258593102812, 0.5605206522382088]]
# Group search results
res = client.search(
collection_name="group_search_collection",
data=query_vectors,
limit=3,
group_by_field="docId",
output_fields=["docId"]
)
# Retrieve the values in the `docId` column
doc_ids = [result['entity']['docId'] for result in res[0]]
import io.milvus.v2.client.ConnectConfig;
import io.milvus.v2.client.MilvusClientV2;
import io.milvus.v2.service.vector.request.SearchReq
import io.milvus.v2.service.vector.request.data.FloatVec;
import io.milvus.v2.service.vector.response.SearchResp
MilvusClientV2 client = new MilvusClientV2(ConnectConfig.builder()
.uri("YOUR_CLUSTER_ENDPOINT")
.token("YOUR_CLUSTER_TOKEN")
.build());
FloatVec queryVector = new FloatVec(new float[]{0.14529211512077012f, 0.9147257273453546f, 0.7965055218724449f, 0.7009258593102812f, 0.5605206522382088f});
SearchReq searchReq = SearchReq.builder()
.collectionName("group_search_collection")
.data(Collections.singletonList(queryVector))
.topK(3)
.groupByFieldName("docId")
.outputFields(Collections.singletonList("docId"))
.build();
SearchResp searchResp = client.search(searchReq);
List<List<SearchResp.SearchResult>> searchResults = searchResp.getSearchResults();
for (List<SearchResp.SearchResult> results : searchResults) {
System.out.println("TopK results:");
for (SearchResp.SearchResult result : results) {
System.out.println(result);
}
}
// Output
// TopK results:
// SearchResp.SearchResult(entity={docId=5}, score=0.74767184, id=1)
// SearchResp.SearchResult(entity={docId=2}, score=0.6254269, id=7)
// SearchResp.SearchResult(entity={docId=3}, score=0.3611898, id=3)
// nolint
func ExampleClient_Search_grouping() {
ctx, cancel := context.WithCancel(context.Background())
defer cancel()
milvusAddr := "YOUR_CLUSTER_ENDPOINT"
token := "YOUR_CLUSTER_TOKEN"
cli, err := client.New(ctx, &client.ClientConfig{
Address: milvusAddr,
APIKey: token,
})
if err != nil {
log.Fatal("failed to connect to milvus server: ", err.Error())
}
defer cli.Close(ctx)
queryVector := []float32{0.3580376395471989, -0.6023495712049978, 0.18414012509913835, -0.26286205330961354, 0.9029438446296592}
resultSets, err := cli.Search(ctx, client.NewSearchOption(
"my_collection", // collectionName
3, // limit
[]entity.Vector{entity.FloatVector(queryVector)},
).WithGroupByField("docId"))
if err != nil {
log.Fatal("failed to perform basic ANN search collection: ", err.Error())
}
for _, resultSet := range resultSets {
log.Println("IDs: ", resultSet.IDs)
log.Println("Scores: ", resultSet.Scores)
}
// Output:
// IDs:
// Scores:
}
import { MilvusClient, DataType } from "@zilliz/milvus2-sdk-node";
const address = "YOUR_CLUSTER_ENDPOINT";
const token = "YOUR_CLUSTER_TOKEN";
const client = new MilvusClient({address, token});
var query_vector = [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, -0.26286205330961354, 0.9029438446296592]
res = await client.search({
collection_name: "my_collection",
data: [query_vector],
limit: 3,
// highlight-start
group_by_field: "docId"
// highlight-end
})
// Retrieve the values in the `docId` column
var docIds = res.results.map(result => result.entity.docId)
export CLUSTER_ENDPOINT="YOUR_CLUSTER_ENDPOINT"
export TOKEN="YOUR_CLUSTER_TOKEN"
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/search" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
"collectionName": "group_search_collection",
"data": [
[0.3580376395471989, -0.6023495712049978, 0.18414012509913835, -0.26286205330961354, 0.9029438446296592]
],
"annsField": "vector",
"limit": 3,
"groupingField": "docId",
"outputFields": ["docId"]
}'
在以上请求中,limit=3
表示系统将返回最多 3 个分组,每个分组中包含一条与查询向量最相似的 Entity。
设置 Group Size
在默认情况下,Grouping Search 仅为每个分组返回一条 Entity。如果希望每个分组中返回多个结果,可以通过设置 group_size
和 strict_group_size
参数实现。
- Python
- Java
- NodeJS
- cURL
# Group search results
res = client.search(
collection_name="group_search_collection",
data=query_vectors, # 查询向量
limit=5, # 返回的分组数量
group_by_field="docId", # 分组字段
group_size=2, # 每个分组中最多返回 2 条 Entity
strict_group_size=True, # 确保每个分组包含 2 条 Entity,除非数据不足
output_fields=["docId"]
)
FloatVec queryVector = new FloatVec(new float[]{0.14529211512077012f, 0.9147257273453546f, 0.7965055218724449f, 0.7009258593102812f, 0.5605206522382088f});
SearchReq searchReq = SearchReq.builder()
.collectionName("group_search_collection")
.data(Collections.singletonList(queryVector))
.topK(5)
.groupByFieldName("docId")
.groupSize(2)
.strictGroupSize(true)
.outputFields(Collections.singletonList("docId"))
.build();
SearchResp searchResp = client.search(searchReq);
List<List<SearchResp.SearchResult>> searchResults = searchResp.getSearchResults();
for (List<SearchResp.SearchResult> results : searchResults) {
System.out.println("TopK results:");
for (SearchResp.SearchResult result : results) {
System.out.println(result);
}
}
// Output
// TopK results:
// SearchResp.SearchResult(entity={docId=5}, score=0.74767184, id=1)
// SearchResp.SearchResult(entity={docId=5}, score=-0.49148706, id=8)
// SearchResp.SearchResult(entity={docId=2}, score=0.6254269, id=7)
// SearchResp.SearchResult(entity={docId=2}, score=0.38515577, id=2)
// SearchResp.SearchResult(entity={docId=3}, score=0.3611898, id=3)
// SearchResp.SearchResult(entity={docId=3}, score=0.19556211, id=4)
import { MilvusClient, DataType } from "@zilliz/milvus2-sdk-node";
const address = "YOUR_CLUSTER_ENDPOINT";
const token = "YOUR_CLUSTER_TOKEN";
const client = new MilvusClient({address, token});
var query_vector = [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, -0.26286205330961354, 0.9029438446296592]
res = await client.search({
collection_name: "my_collection",
data: [query_vector],
limit: 3,
group_by_field: "docId",
// highlight-start
group_size: 2,
strict_group_size: true
// highlight-end
})
// Retrieve the values in the `docId` column
var docIds = res.results.map(result => result.entity.docId)
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/search" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
"collectionName": "group_search_collection",
"data": [
[0.3580376395471989, -0.6023495712049978, 0.18414012509913835, -0.26286205330961354, 0.9029438446296592]
],
"annsField": "vector",
"limit": 5,
"groupingField": "docId",
"groupSize":2,
"strictGroupSize":true,
"outputFields": ["docId"]
}'
在以上示例中:
-
group_size
:该参数决定了每个分组返回的理想 Entity 数量。例如,group_size=2
意味着每个分组(即每个docId
)应返回 2 条最相似的段落(chunk
)。若不设置group_size
,系统默认每个分组返回 1 个结果。 -
strict_group_size
:布尔参数,控制是否严格执行group_size
设定的数量。当strict_group_size=True
时,系统会尽量使每个分组都包含group_size
指定的数量(如 2 个段落),除非该分组中没有足够的数据。默认设置下(strict_group_size=False
),系统将优先保证满足limit
参数指定的分组数量,而不强求每个分组内达到group_size
,这在数据分布不均的情况下更为高效。
有关更多参数信息,请参考 search()。
注意事项
-
分组数量:
limit
参数决定了返回的分组数量,而不是每组中的具体 Entity 数量。设置合理的limit
值可以帮助控制搜索结果的多样性和查询效率。如果数据分布集中或查询性能要求较高,可适当减少limit
值,以减少计算开销。 -
分组内 Entity 数量:
group_size
决定了每个分组内返回的 Entity 数量。根据使用场景,适当调整group_size
可以有效提升搜索结果的丰富性。但在数据分布不均的情况下,部分分组可能会返回少于group_size
个 Entity,特别是在数量有限的场景下。 -
严格分组大小:
strict_group_size=True
时,系统会尽量保证每个分组中返回group_size
个 Entity,除非分组内数据本身不足。此设置可以确保每个分组的 Entity 数量一致,但在数据分布不均或资源受限时可能会导致性能下降。若不需要严格的 Entity 数量,可以将strict_group_size
设置为False
,提高查询速度。
